Why Cigelighting Triproof LED Luminaires Excel in Demanding Environments

When facing the challenges of lighting in harsh industrial or commercial settings, traditional fixtures often fall short. Dust, moisture, chemicals, physical knocks, and fluctuating temperatures can quickly compromise performance and safety. This is where Triproof LED luminaires establish themselves as a primary and highly reliable solution. But what exactly makes them so suitable, and how do you ensure they are correctly implemented?

Unpacking the "Triproof" Advantage

The term "Triproof" signifies robust protection against three core environmental aggressors: dust, water, and corrosion. These luminaires represent an evolution from older fluorescent "trip-proof" designs, leveraging modern LED technology within a fundamentally protective housing. The core construction typically involves:

1.A Rugged Housing: Engineered from specialized materials (like high-grade plastics or metals) to form a robust protective shell.

2.Advanced Sealing: Comprehensive gaskets and seals are employed at all joints and entry points (like cable glands) to prevent the ingress of dust and liquids.

3.Surface Protection: Often featuring specialized surface treatments (like nano-coatings or corrosion-resistant finishes) to shield against chemical vapors, salt spray, and general degradation.

4.Impact Resistance: Designed to withstand accidental bumps and knocks common in busy industrial areas.

5.Integrated LED Technology: High-efficiency LED modules and dedicated, long-life LED drivers are housed securely within the protective shell.

The effectiveness of this protection is quantified by standard ratings:

IP65 Rating: Guarantees complete protection against dust ingress and resistance to low-pressure water jets from any direction.

IK08 Rating: Indicates high resistance to impact (equivalent to 5 joules of impact energy).

Corrosion Resistance (e.g., WF2): Specifies suitability for environments with significant chemical exposure or salt-laden atmospheres.

Core Strengths Driving Adoption

Triproof LEDs offer distinct advantages that make them indispensable in tough conditions:

Exceptional Durability & Longevity: The sealed, robust construction significantly extends operational life compared to standard fixtures, minimizing failures caused by environmental contaminants. LED technology itself boasts a long lifespan, reducing replacement frequency.

Lower Maintenance Needs: Reduced failure rates translate directly into less downtime for bulb changes or repairs, especially critical in hard-to-reach or hazardous locations. Cleaning is also simplified due to the smooth, sealed surfaces.

Enhanced Safety: Protection against dust and moisture ingress drastically lowers risks associated with electrical shorts and potential ignition sources in volatile environments. High IK ratings ensure the fixture remains intact even after accidental impacts.

Operational Resilience: Designed to perform reliably across a wide range of temperatures and challenging atmospheric conditions, ensuring consistent light output where it's needed most.

Energy Efficiency: Like all quality LED solutions, Triproof luminaires consume significantly less power than traditional lighting options, leading to substantial operational cost savings.

Versatile Application: Available in various shapes (linear/batten being predominant), sizes, and mounting options, allowing for tailored solutions across diverse settings.

Where Triproof LEDs Shine: Application Environments

These luminaires are engineered for locations where standard lighting would quickly deteriorate or pose safety risks. Key application areas include:

Industrial Facilities: Manufacturing plants, assembly lines, warehouses, workshops (exposed to dust, moisture, vibration).

Utility & Processing Plants: Power generation stations, water treatment facilities, chemical processing plants, oil & gas refineries (corrosive atmospheres, high humidity).

Food & Beverage: Processing areas, bottling plants, cold storage, wash-down zones (requires frequent cleaning, moisture resistance, corrosion resistance).

Transportation & Logistics: Automotive garages, loading bays, shipping docks, vehicle wash stations, airports (dust, moisture, potential impacts).

Agricultural Settings: Barns, stables, milking parlors, greenhouses (damp, dusty, corrosive environments).

Public & Commercial Infrastructure: Underground parking garages, subway/tunnel lighting, public walkways, sports facilities, swimming pool areas (moisture, potential vandalism/impact).

Marine & Coastal: Shipyards, dockside areas, marinas (salt spray corrosion, high humidity).

Understanding Triproof LED Variants

While the core protective principles remain constant, Triproof LED luminaires come in different configurations to suit specific needs and budgets. The most common types leverage the familiar linear form factor:

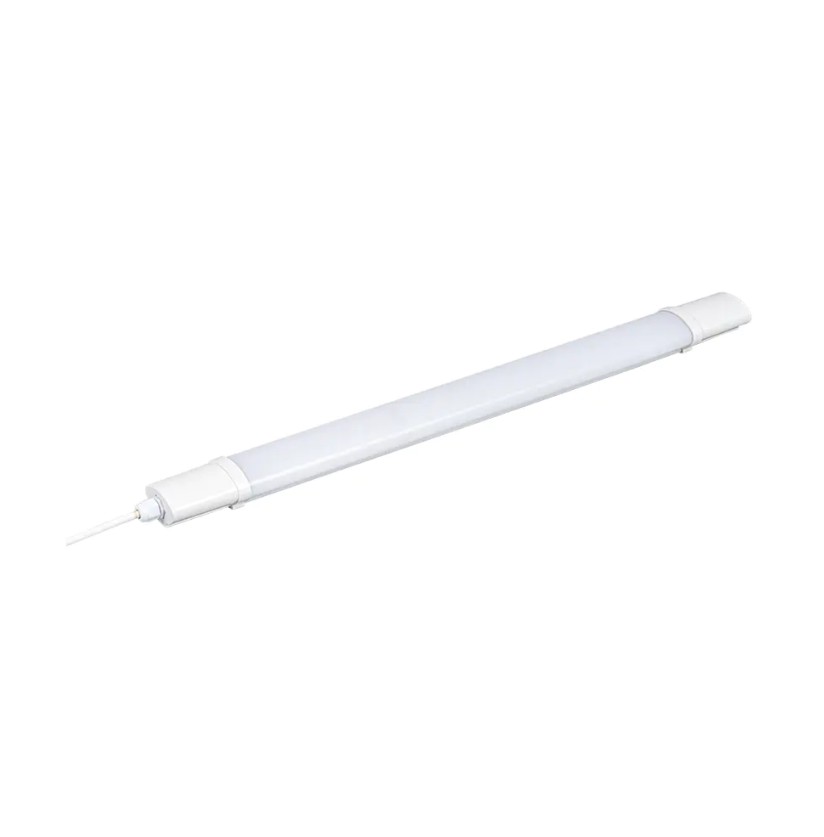

Linear/Batten Style with Integrated LED Modules: This is the most prevalent modern design. Features a single, sealed housing containing the LED light source (either a continuous LED strip or multiple discrete modules) and driver. Offers a sleek profile and optimized light distribution.

Linear/Batten Style Housing LED Tubes: An evolution of the traditional fluorescent triproof light. Uses a protective housing designed to accommodate standard LED tube lights (like T8 tubes). Offers flexibility in light source replacement (though less common with modern integrated designs).

Material Variations: Housings are typically constructed from robust engineering plastics. Common options include:

ABS + PC: Often considered a standard or premium combination. ABS provides good impact resistance, while the Polycarbonate (PC) cover offers high strength, excellent clarity, inherent UV resistance (preventing yellowing), and superior temperature tolerance. Delivers strong overall performance and longevity.

PS (Polystyrene): Primarily found in more budget-conscious options. While offering basic protection, PS is generally less impact-resistant and more prone to brittleness over time, especially under UV exposure or temperature extremes, compared to ABS/PC.

Triproof LED Housing Material Comparison

Essential Guidelines for Installing Triproof LED Luminaires

Proper installation is critical to achieving the promised protection and performance. Always prioritize safety and adhere to local electrical codes and manufacturer instructions. Key steps include:

1.Planning & Assessment:

Determine optimal mounting locations for required illumination levels and coverage.

Verify the fixture's IP, IK, and corrosion ratings are suitable for the specific environmental hazards present.

Ensure structural integrity of the mounting surface.

Plan cable routing paths.

2.Power Isolation: Before any work begins, switch off the relevant circuit at the main distribution board and verify it is dead using a suitable voltage tester.

3.Mounting: Securely fix the mounting brackets or channels to the surface (ceiling, wall, structure) using appropriate fasteners. Ensure the mounting is level and robust.

4.Preparing the Fixture:

Open the fixture carefully (usually by releasing clips or screws securing the cover/diffuser).

Feed the power supply cable through the designated IP-rated cable gland supplied with the fixture. This gland is crucial for maintaining the seal.

Strip the cable ends to the required length.

5.Electrical Connection:

Connect the live (L), neutral (N), and earth (ground/E) conductors from the supply cable to the corresponding terminals inside the fixture. Follow the wiring diagram provided meticulously.

Ensure all connections are tight and secure. Use suitable connectors (e.g., Wago lever nuts, screw terminals) – avoid simple tape or wire nuts which can loosen over time.

Carefully tuck wires neatly inside the housing to avoid pinching when closing.

6.Sealing & Closure:

Tighten the cable gland securely onto the cable and fixture entry point according to the manufacturer's instructions – this is vital for the IP rating.

Ensure all gaskets or seals are clean, undamaged, and correctly seated in their channels.

Carefully reposition and secure the cover/diffuser, ensuring all clips engage or screws are tightened evenly to achieve a uniform seal. Avoid over-tightening screws.

7.Final Checks & Commissioning:

Visually inspect the fixture for secure mounting and proper closure.

Restore power and test the fixture's operation.

Verify light output and beam pattern meet expectations.

Ensuring Long-Term Performance

Regular Inspection: Periodically check fixtures for signs of physical damage, seal degradation, or water/dust ingress. Inspect cable glands for tightness.

Gentle Cleaning: Clean diffusers/cover surfaces with a soft cloth and mild detergent solution as needed. Avoid abrasive cleaners or high-pressure washers unless explicitly rated for it (e.g., IP66/IP67 fixtures might tolerate low-pressure washing, but always check the spec).

Prompt Action: Address any damage or seal issues immediately to maintain protection levels.

Conclusion

Triproof LED luminaires represent a smart investment for lighting in environments where reliability, safety, and durability are non-negotiable. Their engineered protection against dust, water, corrosion, and impact directly translates into reduced maintenance headaches, lower long-term costs, enhanced safety compliance, and dependable illumination where standard lighting solutions falter. By understanding their strengths, selecting the appropriate type and specification for the environment, and adhering to rigorous installation and maintenance practices, facility managers and engineers can leverage Triproof LED technology to create well-lit, safe, and efficient spaces even under the most challenging conditions.
